General Purpose Blades

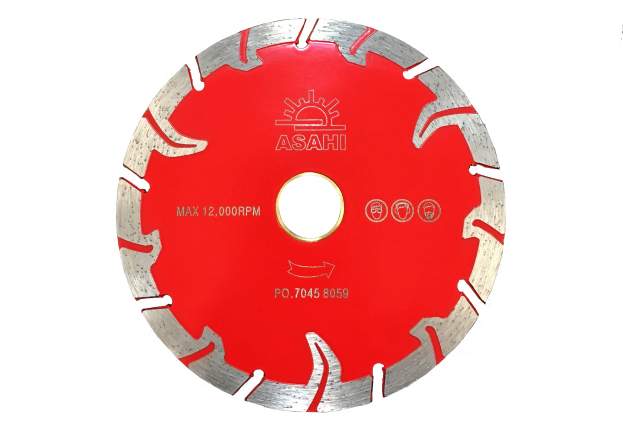

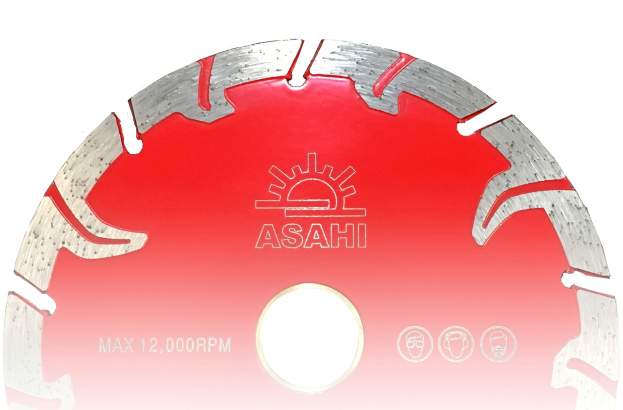

General Purpose Durastar Blades
Asahi Durastar Diamond Blades are designed as a general purpose segmented blade with side protection.
Designed for cutting materials including: Concrete, mortar, brick and stone.
Diameter |
Segment |
Bore Size |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | (mm) |
| 100 | 4" | 1.8mm | 7.5mm | 22.23 / 20.00 |
| 125 | 5" | 2.0mm | 7.5mm | 22.23 / 20.00 |
| 150 | 6" | 2.2mm | 7.5mm | 22.23 / 20.00 |
| 180 | 7" | 2.2mm | 7.5mm | 25.40 / 22.23 |
| 230 | 9" | 2.6mm | 7.5mm | 25.40 / 22.23 |
General Purpose Durastar Blades with Flange
The Asahi Durastar Blade with a fixing flange provides the ability to flush cut the material while making use of the entire blade. They are designed to continuously cut through the material resulting in a more professional finish.
Designed for cutting materials including: Concrete, mortar, brick and stone.
Diameter |
Segment |
Mounting |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | Type |
| 100 | 4" | 1.8mm | 7.5mm | M14 Flange |
| 125 | 5" | 2.0mm | 7.5mm | M14 Flange |
| 230 | 9" | 2.6mm | 7.5mm | M14 Flange |
Multi Cutter Diamond Blade with Flange
Asahi flange mounted Diamond Multi Cutters are designed with extended diamond coverage to enable grinding and bulk removal of material. They will cut most abrasive materials.
Designed for cutting materials including: Marble through to sandstone and granite.
Diameter |
Segment |
Mounting |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | Type |
| 125 | 5" | 2.4mm | 7.5mm | M14 Flange |
|
If you can't find the blade you are looking for please contact us on: |
|---|
- General Purpose Blades - Product Info
- General Purpose Blades with Flange - Product Info
- Blade Performance vs. Life and Cutting Rate - Info Sheet
- Optimum Saw Blade Selection - Info Sheet
- Blade Operating Speeds - Info Sheet
- Blade Operating Guide (Material Specific) - Info Sheet
- Blade Operating Instructions - Info Sheet
