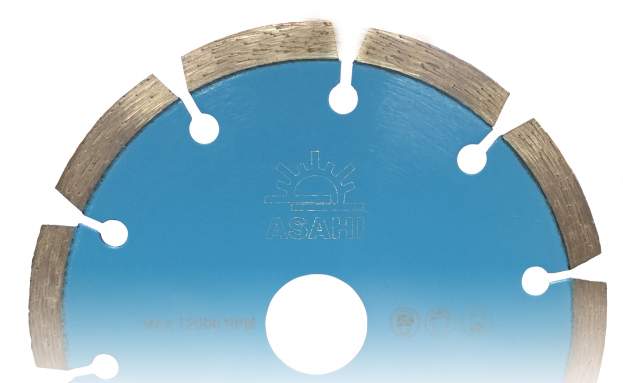

Granite Blades
Astra Wave Cutters
Asahi Astra Wave Cutters are recommended for work requiring fast free cutting of hard materials at a competitive cost.
Designed for cutting materials including: Granite, marble and other hard materials.
Diameter |
Segment |
Bore Size |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | (mm) |
| 100 | 4" | 2.4mm | 7.0mm | 22.23 / 20 |
| 125 | 5" | 2.4mm | 7.0mm | 22.23 / 20 |
| 150 | 6" | 2.4mm | 7.0mm | 22.23 / 20 |
| 180 | 7" | 2.4mm | 7.0mm | 25.4 / 22.23 |
Asahi Durastar B-type
Asahi Durastar B-type Blades come with side protection and are designed specifically for cutting granite.
Designed for cutting materials including: Granite.
Diameter |
Segment |
Bore Size |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | (mm) |
| 125 | 5" | 2.0mm | 7.5mm | 22.23 / 20 |
| 180 | 7" | 2.2mm | 7.5mm | 25.40 / 22.23 |
| 230 | 9" | 2.6mm | 7.5mm | 25.40 / 22.23 |

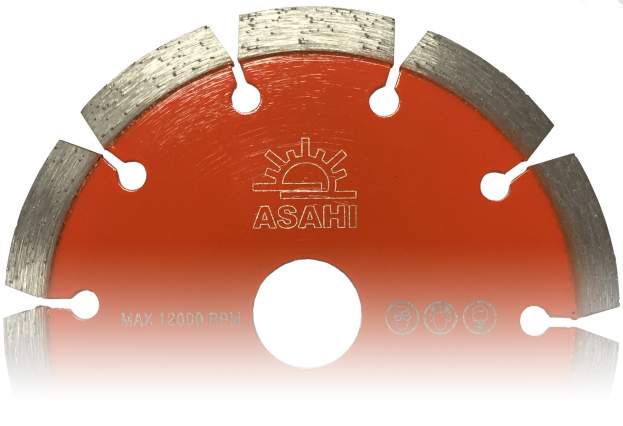

Professional Segmented
Asahi Segmented Blades are designed for professional trades. They are available in sizes to suit angle grinders.
Designed for cutting materials including: Granite, hard brick and other hard materials.
Diameter |
Segment |
Bore Size |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | (mm) |
| 125 | 5" | 2.4mm | 7.0mm | 22.23 / 20 |
| 125 | 5" | 2.4mm | 9.0mm | 22.23 / 20 |
| 150 | 6" | 2.4mm | 7+2mm | 22.23 / 20 |
| 200 | 8" | 2.4mm | 7+2mm | 1" / 22.23 |

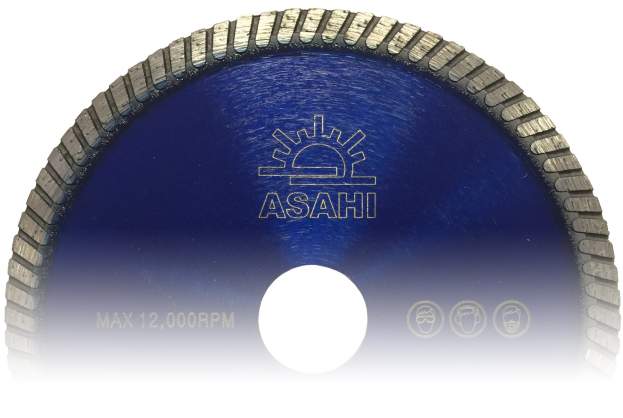

Storm Wave Turbo Cutter
The Asahi Storm Wave Turbo Cutter comes with side protection and is designed for clean and fast cutting. They are available in sizes to suit angle grinders.
Designed for cutting materials including: Granite, brick and concrete.
Diameter |
Segment |
Bore Size |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | (mm) |
| 125 | 5" | 2.4mm | 8.0mm | 22.23 / 20 |

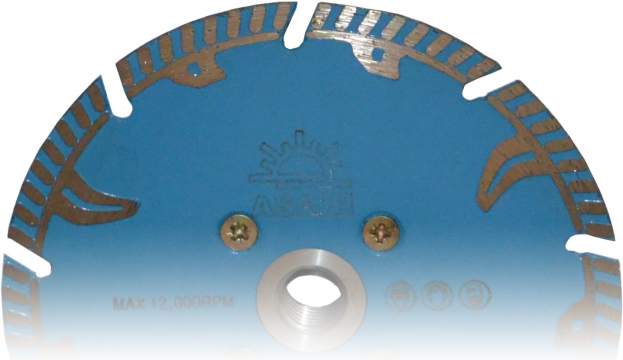

Asahi Durastar with Flange
The Asahi Durastar Blade for granite is designed with a fixing flange. This provides the blade with the ability to flush cut the material for a more professional finish.
Designed for cutting materials including: Granite and hard brick.
Diameter |
Segment |
Mounting |
||
|---|---|---|---|---|
| (mm) | (in.) | T | W | Type |
| 125 | 5" | 2.0mm | 7.5mm | M14 Flange |
|
Asahi Granite Blades are available in sizes 4" - 18". |
|---|
