Arix Core Drills
Core Drills - Arix

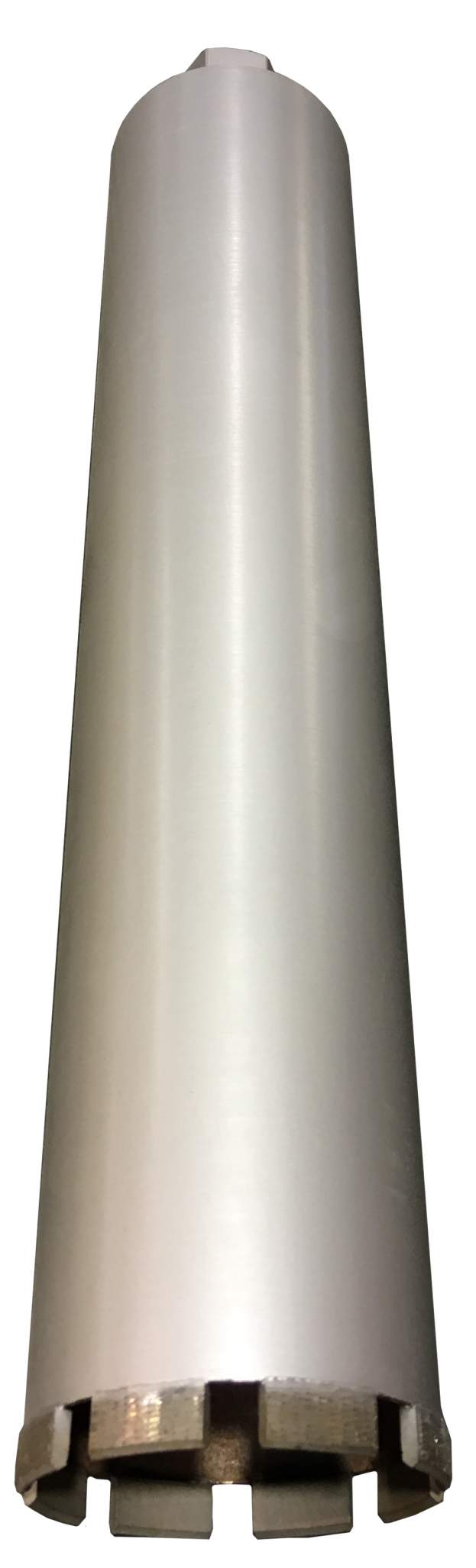

Asahi manufacture and stock a wide range of Arix Thin Wall Bit Core Drills (TWB’s).

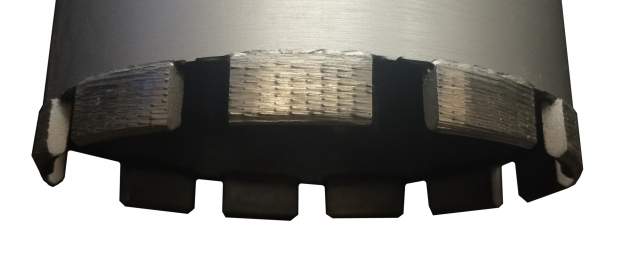

Manufactured with the latest 3D “arranged” diamond technology these are the most efficient cutting tools on the market.
All Asahi Core Drills can be manufactured to meet any specific need and can also be refurbished / re-tipped to reduce costs at our Sydney facility Click here for more information.
Outside Diameter |
Length (mm) |
Type |
Connector |
|
|---|---|---|---|---|
| 20mm | 450 | Crown | 1 1/4" UNC | |
| 22mm | 450 | Crown | 1 1/4" UNC | |
| 24mm | 450 | Crown | 1 1/4" UNC | |
| 25mm (1") | 450 | Crown | 1 1/4" UNC | |
| 28mm | 450 | Crown | 1 1/4" UNC | |
| 30mm | 450 | Crown | 1 1/4" UNC | |
| 32mm (1 1/4") | 450 | Crown | 1 1/4" UNC | |
| 35mm | 450 | Crown | 1 1/4" UNC | |
| 38mm (1.5") | 450 | Crown | 1 1/4" UNC | |
| 40mm | 450 | Segment | 1 1/4" UNC | |
| 45mm (1 3/4") | 450 | Segment | 1 1/4" UNC | |
| 48mm | 450 | Segment | 1 1/4" UNC | |
| 52mm (2") | 450 | Segment | 1 1/4" UNC | |
| 64mm (2.5") | 450 | Segment | 1 1/4" UNC | |
| 77mm (3") | 450 | Segment | 1 1/4" UNC | |
| 84mm (3 1/4") | 450 | Segment | 1 1/4" UNC | |
| 92mm (3.5") | 450 | Segment | 1 1/4" UNC | |
| 102mm (4") | 450 | Segment | 1 1/4" UNC | |
| 107mm (4 1/4") | 450 | Segment | 1 1/4" UNC | |
| 127mm (5") | 450 | Segment | 1 1/4" UNC | |
Light Duty Water Swivels
Asahi Water Swivels allow for faster drilling speeds and feed rates and also provide a longer tool life.
Description |
Input Size | Output Size | |
|---|---|---|---|
| Thin Wall Bit Water Swivel - standard 1/2" chuck | 13mm / 1/2" | 1 1/4" UNC | |
Core Drill Machine and Stand
The Asahi Core Drill Machine is a fully ball bearing, powerful two speed core drill motor with an optional adjustable drill stand.
The machine comes fitted with a water attachment, a safety clutch and spirit level and one carbon brush with an adjustable front and back handle. The power cord is fitted with RCD protection.
It is extremely versatile and ideal for drilling a variety of materials up to a maximum of 80mm diameter in walls, floors and roofs.
Volatge |
RPM |
Input Power |
Drilling Capacity |
Connector |
|
|---|---|---|---|---|---|
| 240v | 2100/950 | 1500w | 80mm dia | 1 1/4" UNC / 1/2" | |
|
Asahi Arix TWB's are available in sizes 20mm - 12". |
|---|
